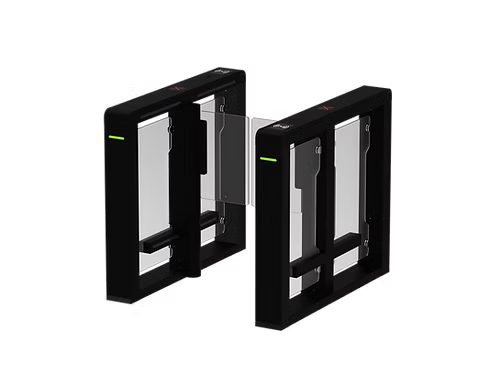

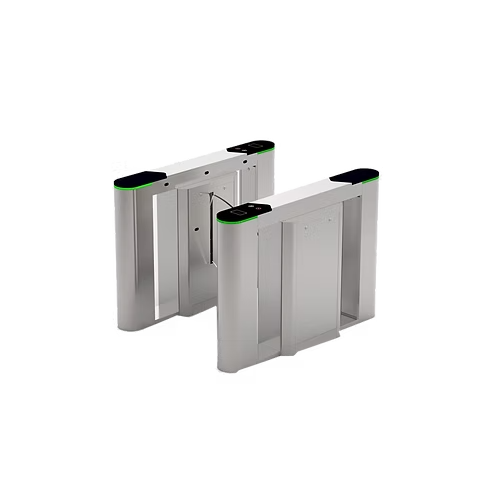

SBTL7000 / SBTL7200

The SBTL7000 / SBTL7200 is a single lane swing barrier turnstile series designed for smooth and silent operation and draws very little power. With a compact design, the width of cabinet is only 5.9 inches.

Design a project

Category :

FEATURES

  • Contact-less Access: Incorporates RFID card readers or NFC technology for hassle-free access, minimizing physical contact and enhancing user convenience
  • Anti-tailgating Technology: Utilizes sensors and algorithms to detect and prevent unauthorized individuals from entering behind an authenticated user, enhancing security and preventing breaches.
  • Customizable Configurations: Offers flexibility in lane width, direction control, and passage modes to accommodate various access control requirements and site layouts.
  • Durable Construction: Built with high-quality materials cold rolled material, which using full welding process, and powder coating cosmetic, ensuring longevity and resistance to vandalism.
  • High Throughput: Designed for high-traffic environments, capable of processing a large number of users efficiently without compromising security or causing congestion.
  • Emergency Egress Options: Equipped with emergency model or fail-safe mechanisms to allow for quick evacuation during emergencies while maintaining security protocols.
  • User-Friendly Interface: Intuitive control panels, LED indicators, and audible

SPECIFICATION

Specification SBTL7000 SBTL7200
Power Requirements AC 100~120V / 200~240V, 50/60Hz AC 100~120V / 200~240V, 50/60Hz
Working Temperature -20°C~60°C / -4°F~140°F -20°C~60°C / -4°F~140°F
Working Humidity 5% ~ 95% 5% ~ 95%
Working Power 50W Running / 22W Standby 50W Running / 22W Standby
Working Environment Indoor/Outdoor (if shelter available) Indoor/Outdoor (if shelter available)
Throughput Rate <30 people/min <30 people/min
Lane Width 660mm (options 920mm) / 26in (options 36in) 660mm (options 920mm) / 26in (options 36in)
Noise <60dB <60dB
Infrared Sensor 6 pairs (options 10 pairs) 6 pairs (options 10 pairs)
Barrier Movement Swing Swing
MCBF ≤5 million ≤5 million
Drive Unit DC brush-less motor DC brush-less motor
LED Indicator Red/Green Color Red/Green Color
Emergency Mode Door open automatically Door open automatically
Chassis Dimensions (L×W×H) 1200×150×1020mm / 47.2×5.9×40.5in 1200×150×1020mm / 47.2×5.9×40.5in
Dimensions with Packaging (L×W×H) 1290×660×1215mm / 51.2×26×46.6in 1290×660×1215mm / 51.2×26×46.6in
Net Weight 120kg / 265lbs 72kg / 158lbs
Gross Weight 160kg / 353lbs 72kg / 158lbs
Cabinet Material Cold rolled steel Cold rolled steel
Lid Material Cold rolled steel Cold rolled steel
Color Number White RAL9003, Black RAL9005 White RAL9003, Black RAL9005
Barrier Material Acrylic Acrylic
Packing Material Wooden case Wooden case

DATASHEET SBTL7000 / SBTL7200

BIM

2024 Download

2025 : Download

2026 : Download

WARRANTY

ZKTeco USA Turnstiles have a 5 – year hardware warranty against manufacturing defects.
